Not every commercial dryer runs on a digital control board — many mid-range and older units still rely on a mechanical or electromechanical timer to control cycle length. These timers use a motor-driven cam system to advance through the drying cycle, switching heat and tumble functions on and off at set intervals. When a timer fails, a dryer might not advance past a certain point in the cycle, run continuously without stopping, or fail to start heating at all.
How Mechanical Timers Work
Inside a timer assembly, a small synchronous motor slowly rotates a set of cams. Each cam controls a specific electrical contact, turning the heating element, motor, or buzzer on and off as the cams rotate through the cycle. Because this motor runs continuously whenever the dryer is on, and because the internal contacts open and close thousands of times over the unit's life, timers are a classic wear component — the kind of part that works reliably for years and then fails gradually rather than all at once.
Signs of Timer Trouble
- Dryer stuck on one point in the cycle, not advancing even after extended run time
- Cycle runs far longer or shorter than the dial setting indicates
- Heating element never engages, though the drum still tumbles
- Clicking sound with no cycle advancement
- Timer knob spins freely without engaging internal contacts
- Intermittent operation that seems to correct itself when the dial is nudged
Diagnosing a Faulty Timer
Testing a mechanical timer typically involves checking continuity across its terminals at different points in the cycle using a multimeter, comparing the readings against the manufacturer's timer chart. A timer that fails continuity testing at a specific cam position confirms a worn or pitted contact at that stage. It's also worth checking the timer motor itself, since a seized or slow-running motor produces symptoms that look identical to a contact failure but require a different fix.
Replacement Process
- Disconnect power to the dryer before accessing the control panel.

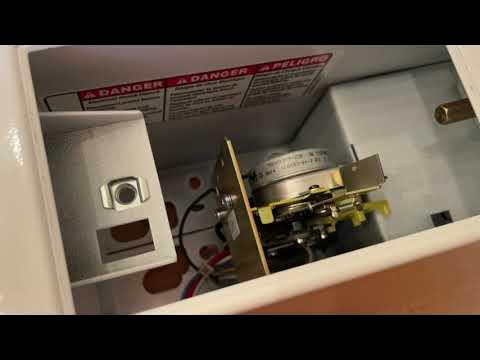

- Remove the control panel or console to expose the timer assembly.
- Take a photo of the wiring harness connections before disconnecting anything.
- Detach the wiring harness from the old timer.
- Unscrew the timer from its mounting bracket and remove it.
- Install the new timer, matching the exact model number whenever possible, since internal cam sequences vary between models.
- Reconnect the wiring harness according to your reference photo.
- Reassemble the control panel and test through a full cycle to confirm proper advancement.
Timer vs. Digital Control Comparison
| Feature | Mechanical Timer | Digital Control Board |
|---|---|---|
| Typical lifespan | 8–15 years | 10–15 years |
| Repair complexity | Moderate, mostly mechanical | Higher, requires electronics diagnosis |
| Replacement cost | $30–$80 | $150–$350 |
| Common failure mode | Worn contacts, seized motor | Failed relays, moisture damage |
| Diagnostic tools needed | Multimeter | Multimeter, sometimes service software |
Extending Timer Life
Because timer motors run continuously during operation, keeping the surrounding cabinet free of lint and dust reduces heat buildup that accelerates wear on both the motor and contacts. For facilities still running older mechanical-timer dryers, sourcing a spare timer for each model in use is worthwhile, since these parts are increasingly discontinued as manufacturers shift entirely to digital controls.
A correctly diagnosed and replaced timer restores predictable cycle behavior, and given the relatively low cost of the part compared to a digital control board, timer repair remains one of the more affordable fixes in commercial dryer maintenance.
