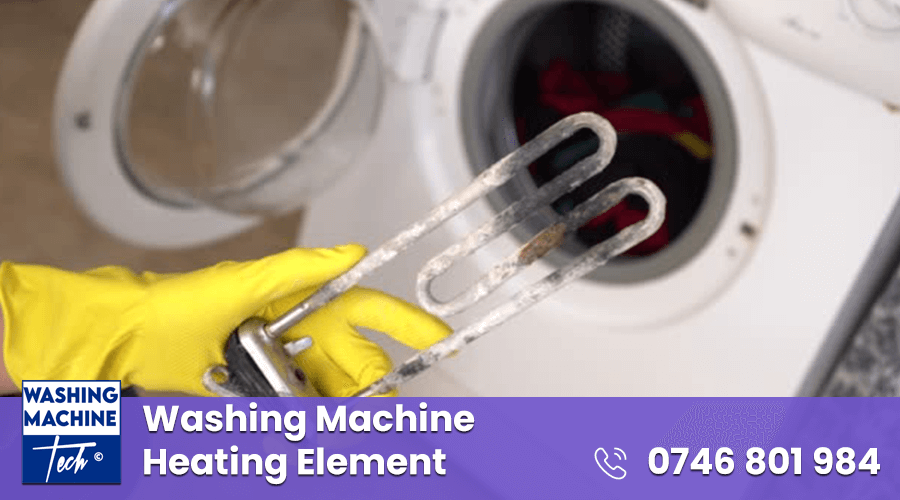

Washing Machine Heating Element

The heating element in a washing machine is a crucial component that heats the water to the desired temperature for washing clothes. It plays a significant role in the effectiveness of the washing process, particularly for removing tough stains and ensuring proper detergent dissolution.

Functions of the Heating Element

1. Heating Water: The primary function is to heat the water to the required temperature for various wash cycles. Different cycles might need different temperatures, from cold to hot.
2. Improving Cleaning Efficiency: Warm or hot water enhances the cleaning power of detergents, helping to break down grease and stains more effectively.
3. Sanitizing Clothes: High temperatures can kill bacteria and germs, ensuring that clothes are not just clean but also hygienic.

Common Problems with Heating Elements

1. No Heat

• Symptoms: The washing machine does not heat the water, resulting in clothes being washed in cold water regardless of the selected cycle.
• Causes: Could be due to a faulty heating element, a blown fuse, or an issue with the thermostat.

2. Inconsistent Heating

• Symptoms: The water temperature varies unpredictably during the wash cycle.
• Causes: A sign of a partially failing heating element or issues with the thermostat or control board.

3. Tripping Circuit Breaker

• Symptoms: The washing machine causes the circuit breaker to trip.
• Causes: This might be due to a short circuit within the heating element.

4. Burning Smell

• Symptoms: Noticeable burning smell during operation.
• Causes: An overheating heating element could be the cause, often due to electrical faults.

How to Fix a Broken Heating Element

Step 1: Safety First

• Unplug the Washing Machine: Ensure the appliance is disconnected from the power source.
• Turn Off Water Supply: Prevent any water flow to the machine.

Step 2: Access the Heating Element

1. Remove the Back Panel: Most washing machines have the heating element located at the back.
2. Locate the Heating Element: It is usually situated near the bottom of the drum.

Step 3: Test the Heating Element

1. Multimeter Test: Use a multimeter to check for continuity. A functioning heating element should show a resistance reading. No reading indicates a broken element.
2. Visual Inspection: Look for signs of damage, such as burn marks or corrosion.

Step 4: Replace the Heating Element

1. Disconnect Wires: Carefully note and disconnect the wires connected to the heating element.
2. Remove the Element: Unscrew and gently pull out the heating element.
3. Install the New Element: Insert the new heating element, ensuring it fits snugly and securely.
4. Reconnect Wires: Attach the wires to the new element as per the notes taken during disconnection.

Step 5: Reassemble and Test

1. Reattach the Back Panel: Secure it with screws.
2. Reconnect Power and Water: Plug in the machine and turn on the water supply.
3. Run a Test Cycle: Select a wash cycle that requires hot water to ensure the new heating element is working correctly.

The heating element is essential for effective washing in your machine, helping to ensure clothes are clean and hygienic. While common problems such as no heat, inconsistent heating, and electrical issues can occur, they can often be diagnosed and fixed with some basic tools and careful steps. Replacing a faulty heating element can restore your washing machine’s performance, ensuring it operates efficiently and effectively.
