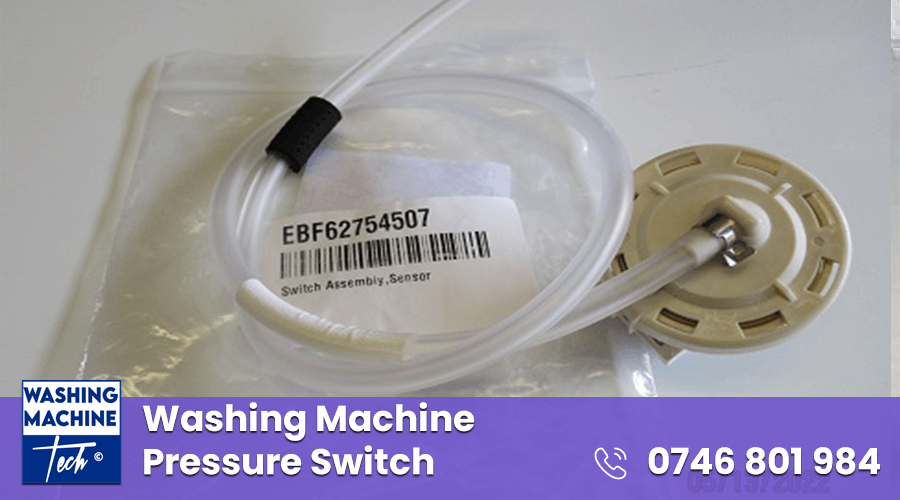

Washing Machine Pressure Switch

The washing machine pressure switch is a crucial component in your washing machine. It monitors the water level inside the drum and controls the amount of water that enters the machine. This ensures that the washing cycle operates correctly and efficiently.

Functions of the Pressure Switch

1. Water Level Detection: The pressure switch detects the water level in the drum and sends a signal to the machine’s control board to stop or start the water inlet.
2. Cycle Control: It helps determine the appropriate water level for different wash cycles, ensuring the machine uses the right amount of water for various load sizes and fabric types.
3. Safety: Prevents overfilling by shutting off the water supply when the drum reaches the desired water level.

Common Problems with the Pressure Switch

1. Inaccurate Water Levels

• Symptoms: The washing machine may overfill or underfill with water.
• Causes: This can be due to a blocked air hose, a faulty switch, or a malfunctioning control board.

2. No Water Filling

• Symptoms: The washing machine does not fill with water at all.
• Causes: This could be caused by a broken pressure switch, a kinked or blocked hose, or electrical issues.

3. Continuous Filling

• Symptoms: The washing machine keeps filling with water and does not stop.
• Causes: Often caused by a stuck or defective pressure switch or a blocked air hose.

4. Error Codes

• Symptoms: The machine displays error codes related to water levels.
• Causes: These errors can indicate issues with the pressure switch or related components.

How to Fix a Broken Pressure Switch

1. Check the Air Hose

1. Unplug the Machine: Always unplug the washing machine before performing any repairs.
2. Locate the Hose: Open the top or back panel of the washing machine to locate the air hose connected to the pressure switch.
3. Inspect for Blockages: Check the hose for any kinks, blockages, or damage.
4. Clean or Replace: If the hose is blocked, clean it thoroughly. If it’s damaged, replace it.

2. Test the Pressure Switch

1. Remove the Switch: Carefully disconnect the pressure switch from the machine.
2. Multimeter Test: Use a multimeter to test the switch for continuity. If there’s no continuity, the switch is faulty.
3. Replace if Necessary: If the pressure switch is defective, replace it with a new one.

3. Inspect Electrical Connections

1. Check Wires: Inspect all wires and connectors leading to and from the pressure switch.
2. Secure Connections: Ensure all connections are secure and there are no loose or damaged wires.

4. Reassemble and Test

1. Reassemble the Machine: Put the washing machine back together, ensuring all parts are correctly installed.
2. Run a Test Cycle: Plug the machine back in and run a test cycle to check if the problem is resolved.

The pressure switch is a vital part of your washing machine, ensuring it operates correctly by regulating water levels. Common issues with the pressure switch can lead to problems like inaccurate water levels or continuous filling. By checking and cleaning the air hose, testing the switch with a multimeter, and inspecting electrical connections, you can often fix these issues yourself. If problems persist, it might be necessary to replace the pressure switch or seek professional help
